Tecnifuellewww.tecnifuelle.com

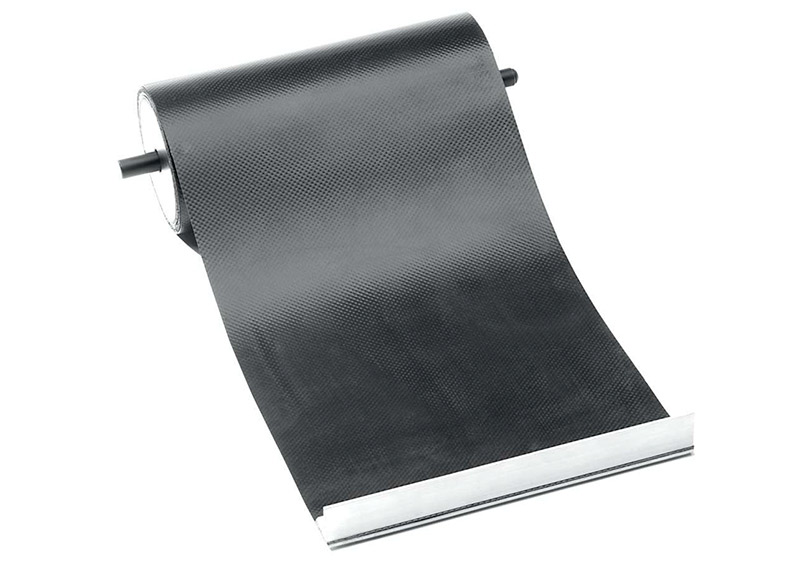

Winders without box

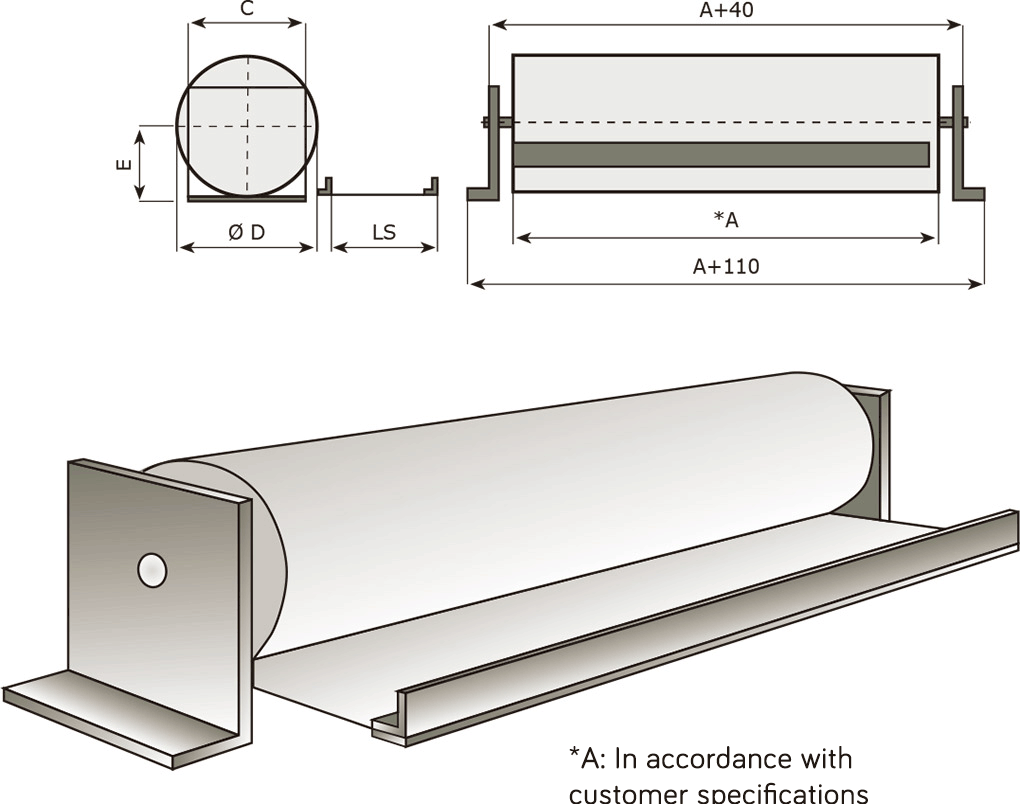

Croquis enrolladores sin cajaThe winders consist of an internal mechanism of springs and bearings, with a belt for each specific requirement.

They are used to protect guides and spindles, or as safety elements in machines, elevating tables, etc…







Enrolladores sin cajaCharacteristics:

  • Take up less room for a greater working travel.
  • Easy to assemble.
  • Silent operation.
  • High speeds.



External dimensions of winders without box (mm)

outside diameter Ø D
travel LS textile belt
e = 1,2 (black)		 textile belt
e=0,4(black)
aluminium
treated glass belt
e=0,5 (black)		 steel belt
e = 0,25		 textile + steel belt
e = 1
300 68 64 65 66
500 71 65 66 69
1000 77 71 67 76
1500 82 75 69 80
2000 92 79 72 87
2500 102 85 75 95
3000 107 88 77 100
4000 122 96 82 114
5000 134 103 86 125
6000 147 109 189 136
7000 159 115 93 147

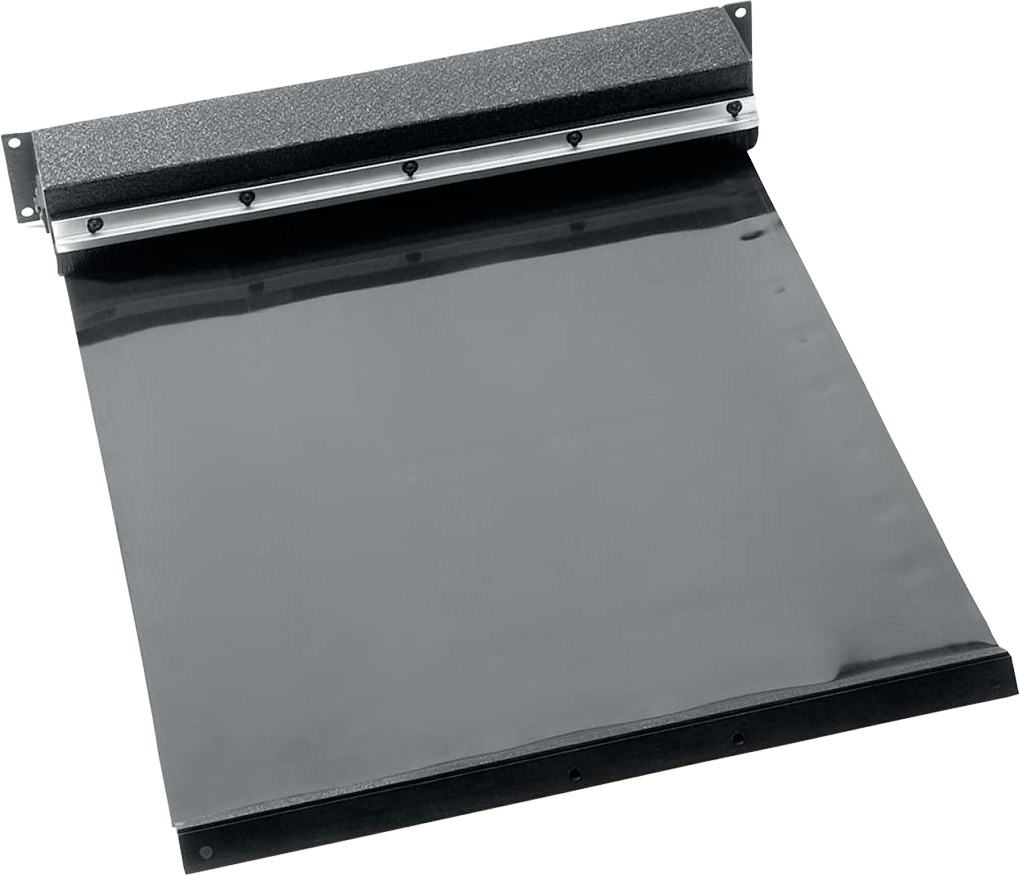

Winders with box

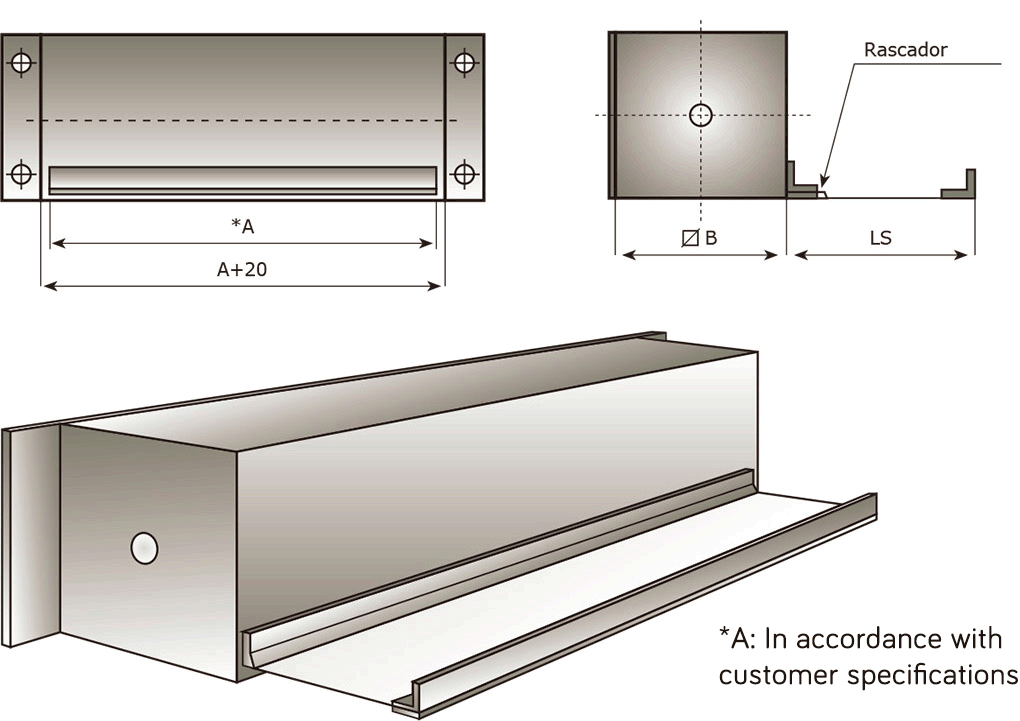

Croquis enrolladores con caja

External dimensions of winders with box (mm)

External measurements of box B
travel LS steel belt
e = 0,25		 textile belt or glass/ viton belt
e = 0,5		 textile belt
e = 1,2
300 50 x 50 80 x 80 85 x 85
500 50 x 50 80 x 80 90 x 90
1000 60 x 60 85 x 85 100 x 100
1500 70 x 70 90 x 90 110 x 110
2000 75 x 75 95 x 95 110 x 110
2500 80 x 80 105 x 105 120 x 120
3000 90 x 90 105 x 105 130 x 130
4000 130 x 130 120 x 120 145 x 145
5000 140 x 140 140 x 140 155 x 155
6000 150 x 150 150 x 150 170 x 170
7000 160 x 160 150 x 150 180 x 180



Belt types

Enrolladores con caja

  • Stainless steel belt:
    Thickness: 0,25 mm, maximum recommended width of 500 mm, resistant to constant temperature of 500ºC.
  • Textile belt in nylon + PVC:
    In thicknesses of 0,5-0,8 -1 and 1,9 mm. for dust protection, resistant to 70ºC.
  • Belt in fibreglass with VITON:
    Thickness: 0,5 mm, resistant to constant temperature of 280ºC
    (Black Viton on one face; Grey polyurethane on the other face)

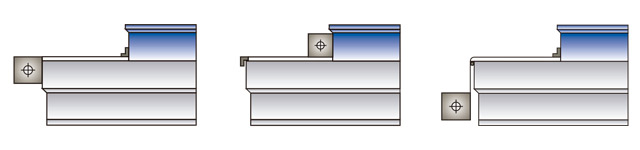

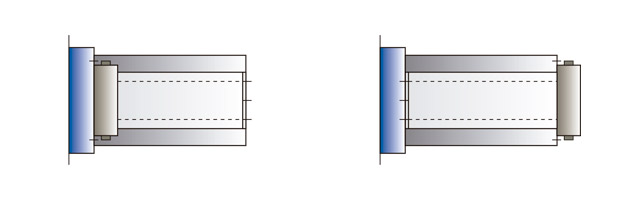

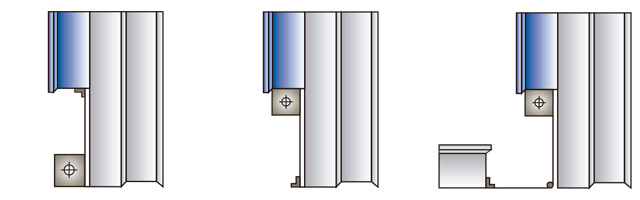

Fastening positions

Posiciones de fijación



Assembly positions

Horizontal
Horizontal

Vertical
Vertical

Transverse
Transverse.
