Straight bellows


Characteristics

Straight bellows

  • Adaptable to any shape of guide.
  • Protective covers totally impermeable to liquids (drilling fluids, oils, etc. ).
  • Unwarpable protective covers.
  • Speeds of up to 200 metres per minute.
  • Versions: vertical, horizontal and transverse.
  • Shapes: square, rectangular, octogonal, etc, and others depending on customer’s requirements.

Straight bellows

  1. Pleated protective nylon cloth with PVC coating on either side.
  2. Intermediary PVC stretch frames.
  3. Join between the folds and the intermediate PVC frames, using high-frequency welding.
  4. Metal frames for securing the bellows to the machine.
  5. Intermediary slides.

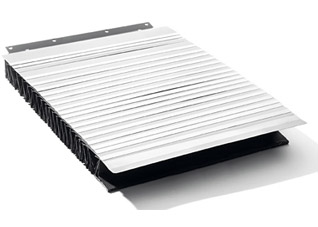

With stainless steel plates

These are used in cases where there are hot chips, in all positions - horizontal, vertical and transverse. They may also be used when liquids such as acids, oils, etc. , are used.

Straight bellows

Opening systems

For very heavy vertical protective elements, tecnifuelle has a number of opening systems.

SYSTEM 1

Stretching device using staples located on the support frame, on as many folds as required, depending on the size of the bellows.

SYSTEM 2

Scissors-type stretching device, ideal for elements that are not guided by the intermediary frames.

Ways of securing ends to the machine

  • In the system with steel frames, the anchoring type and anchoring holes must be specified by the customer.
  • In systems where Velcro is used to fasten the bellows, one side is joined to the end frame of the bellows and, the other to the frame of the machine.
Bellow types Bellow types Bellow types Bellow types Bellow types
END FRAMES FOR
FASTENING BELLOWS TO
THE MACHINE
COMPLETE FOLD HALF FOLD FRAME LARGER THAN
FOLD
FASTENED WITH
VELCRO



Fabrics

FT: Heat-welded bellows
FC: Stitched bellows



Temperature ºC



Ref.
material
Type of fabric and coating
Thickness
(mm)
Temporary
Continuous
Operating conditions
FT
FC



Min
Max



TPP-23 POLIESTER + PVC 0,23
110
-25
70
DUST GUARD,
ACID MEDIUMS
USABLE
USABLE
TPP-35 POLIESTER + PVC 0,35
110
-25
70
DUST GUARD,
ACID MEDIUMS
USABLE
USABLE
TPP-60 POLIESTER + PVC 0,6
110
-25
70
DUST GUARD,
ACID MEDIUMS

USABLE
TPP-100 POLIESTER + PVC 1
110
-25
70
DUST GUARD,
ACID MEDIUMS

USABLE
TPPU-23 POLIESTER + POLYURETHANE 0,23
220
-25
150
RESISTANT TO OILS IN
EMULSION AND GREASE
USABLE
USABLE
TPPU-35 POLIESTER + POLYURETHANE 0,35
220
-25
150
RESISTANT TO OILS IN
EMULSION AND GREASE
USABLE
USABLE
TPPU-60 POLIESTER + POLYURETHANE 0,60
220
-25
150
RESISTANT TO OILS IN
EMULSION AND GREASE

USABLE
TPHY-50 POLIESTER + HYPALON 0,50
250
-15
140
RESISTANT TO MINERAL
OIL, GREASE

USABLE
TPHY-100 POLIESTER + HYPALON 1
250
-15
140
RESISTANT TO MINERAL
OIL, GREASE

USABLE
TNPU-35 NOMEX + POLYURETHANE 0,35
400
-30
200
HOT SWARF,
LASER BEAMS, OILS
USABLE
USABLE
TARPU-35 ARAMIDE + POLYURETHANE 0,35
400
-20
200
HOT SWARF,
OILS, GREASE
USABLE
USABLE
TFVS-35 FIBREGLASS +
SILICONING + PVC
0,35
400
-40
250
FOR HIGH TEMPERATURES CYLINDERS, CEILINGS...
USABLE
USABLE
TFCAL-35 CARBON FIBRE + ALUMINIUM 0,35
500
-40
280
FOR HIGH TEMPERATURES

USABLE
TFVV-35 FIBREGLASS + VITON + POLYURETHANE 0,35
600
-40
280
FOR HIGH TEMPERATURES
USABLE
USABLE



Different construction arrangements

Below types Below types Below types Below types Below types Below types
HORIZONTAL ASSEMBLY HORIZONTAL ASSEMBLY HORIZONTAL ASSEMBLY
OR VERTICAL
HORIZONTAL ASSEMBLY
OR VERTICAL
TRANSVERSE ASSEMBLY VERTICAL ASSEMBLY
